Description
3 Axles 40000liters Fuel Trailer Tanker Function and Introduction:
3 Axles 40000liters Fuel Trailer Tanker
Oil Tanker Trailer is an oil tanker with a tractor head connected to a trailer. Compared with ordinary single-body oil tankers, semi-trailer oil tankers can effectively improve transportation efficiency. Under the same tonnage, it can reduce transportation costs and save fuel consumption.
Oil Tanker Trailer is divided into two parts, the oil tank part and the frame supporting the tank body or the driving part.
The rear part of the semi-trailer oil tanker is generally the same, with rear double axles (two axles) and rear triple axles (three axles). The traction head is selected according to the needs. Semi-trailer oil tankers are usually called by the brand of the traction head
Tank body of semi-trailer oil tanker
1. The tank body is made of 4mm or 6mm high-quality carbon steel produced by the steel company according to national standards. The shape is divided into elliptical or square round tanks, which can hold 1-4 kinds of oil products. Heating and insulation series tank bodies can also be produced.
2. Alcohol and chemical tankers are made of stainless steel imported from South Korea with a thickness of 4mm-5mm.
3. All kinds of hydrochloric acid, sulfuric acid, and alkali liquid tankers are made of plastic with a thickness of 12mm-22mm.
4. There are multiple wave-proof partitions in the tank body. High-pressure gas leak detection is used to make the tank body have high strength, stable center of gravity, and safe and stable vehicle transportation.
5. Centrifugal pumps, gear pumps, and stainless steel pumps can be selected according to the purpose of the tanker truck, which have the characteristics of large flow and fast suction speed.
6. For the measurement of oil tanker trucks, single-count and double-count flow meters can be selected, and tax-controlled computer refueling machines can also be installed, 10-15 meters of automatic retractable return reels can be installed, and refueling guns can be equipped. Edible oil products can be measured by edible oil computer meters.
3 Axles 40000liters Fuel Trailer Tanker Specifications
|
Dimension and Weight |
|
|
Overall Dimension（mm） |
11800x2500x3900mm |
|
Wheelbase |
7,500mm+1,310mm+1,310mm |
|
Payload |
45,000kg |
|
Tare weight |
10,000kg |
|
G.V.W.R. |
55,000kg |
|
Function |
transport Fuel, Oil, Diesel |
|
Tank |
|
|
Volume |
40000L |
|
Thickness(mm) |
Material Q235 carbon steel Tank body and separate compartment plate: 5mm Dish end plate: 6mm |
|
Welding standard |
All welding are to be done by qualified welder per applicable national standard |
|
Compartment |
3 compartments ( 3*12000L ) |
|
Manhole cover |
3 units Safety manhole with breath valve, Aluminum, diameter 500mm. |
|
Discharge valve |
3units 3” API valve with dust cover, aluminum Henghe Brand |
|
Bottom valve |
3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand |
|
Discharge pipe |
3〞seamless steel tube, 6m |
|
Tanker body test |
Hydrostatic test to 5 psi (35 Kpa) on each compartment |
|
Running System |
|
|
Axle |
13Ton,ZY brand 3Axles |
|
Axle Number |
Three |
|
Tire Type and quantity |
12R22.5, 12 pcs. Triangle brand |
|
Rim |
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
|
Suspension system |
Mechanical Suspension |
|
Steel Spring |
10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
|
Electrical System |
Chinese standard 24V lighting system |
|
Brake system: |
Dual line pneumatic brake, SAE hose and connector,no ABS |
|
Brake air chamber |
6 units T30/30 spring brake chambers |
|
Emergency relay valve |
Wabco relay valve |
|
Traction/King Pin |
2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
|
Landing Gear |
JOST A300 C two speed |
|
Accessories: |
|
|
Tool box |
1pcs, One crank and one shaft head wrench |
|
Fire extinguisher |
2 units per trailer |
|
Handrail |
800mm height, pneumatic controlling |
|
Mud guard |
Steel mud guard and front mudguard |
|
Walkway |
Anti-skid walk way from rear to first manhole |
|
Ladder |
High folding ladder as CIMC standard |
|
Spare wheel carriers |
2 pcs |
|
bumper |
Rear bumper with adjustable height |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core electric cable protected by PVC conduit on main frame |
|
|
Paint |
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed |
|
Packing |
Nude, Polish with wax before shipping |
|
Discharging pipe |
Rubber hose,2pcs |
|
kingpin |
Bolts type 2 inch |
|
Painting |
Polyurethane paint&anti-rust primer&sand blasting |
|
Tools for trailer |
Head wrench ;spare wheel crank ; one fire extinguisher; Operation Manual |

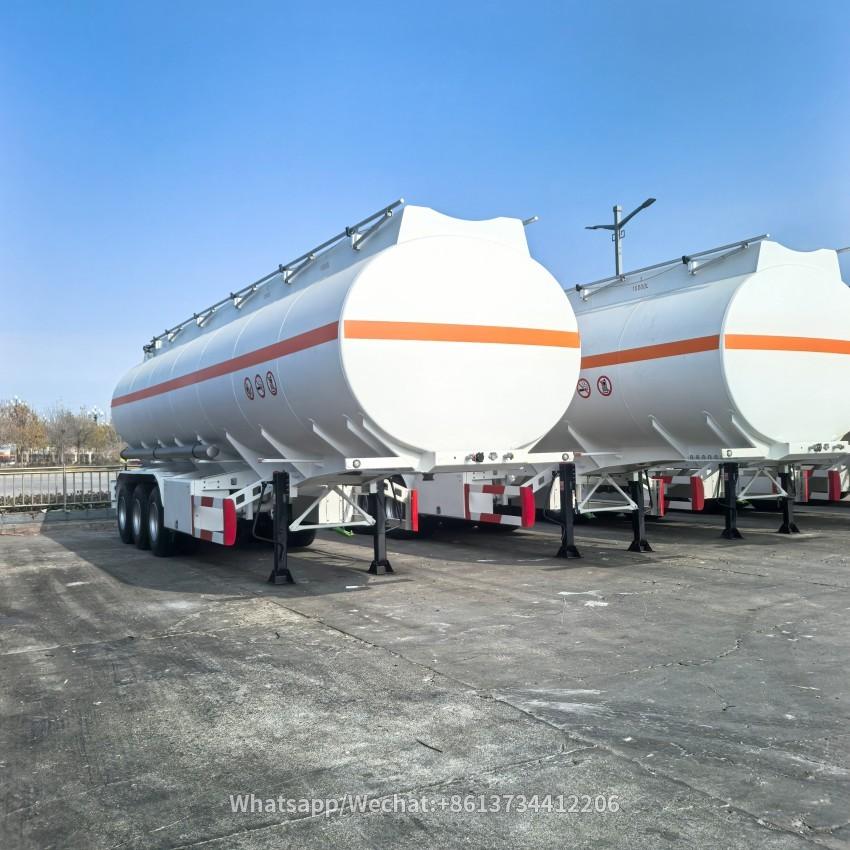

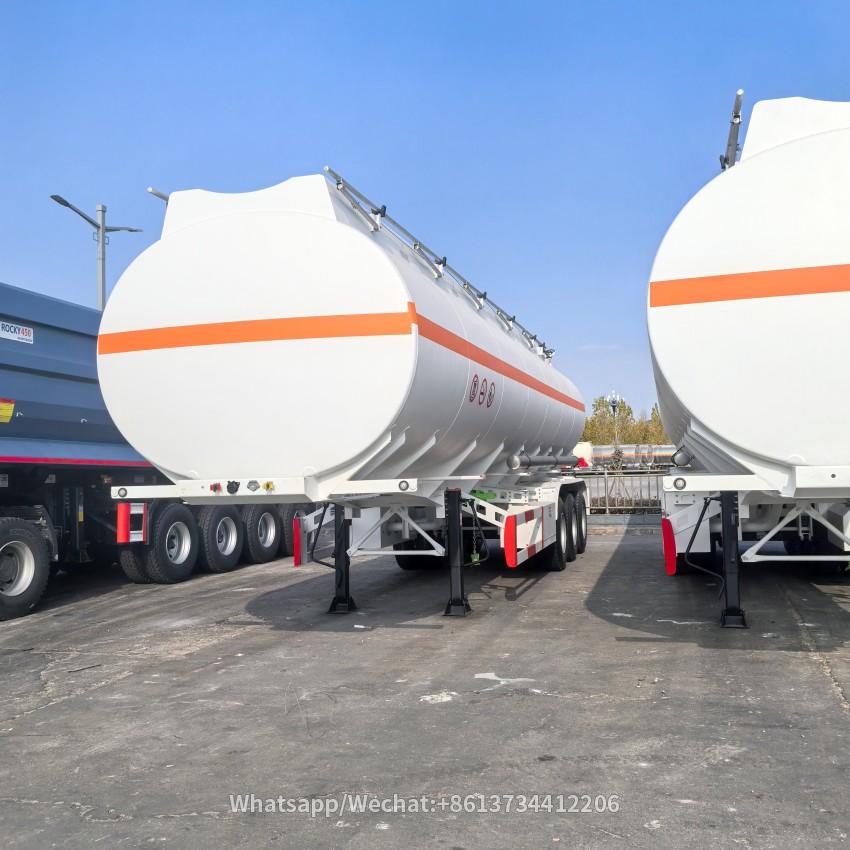

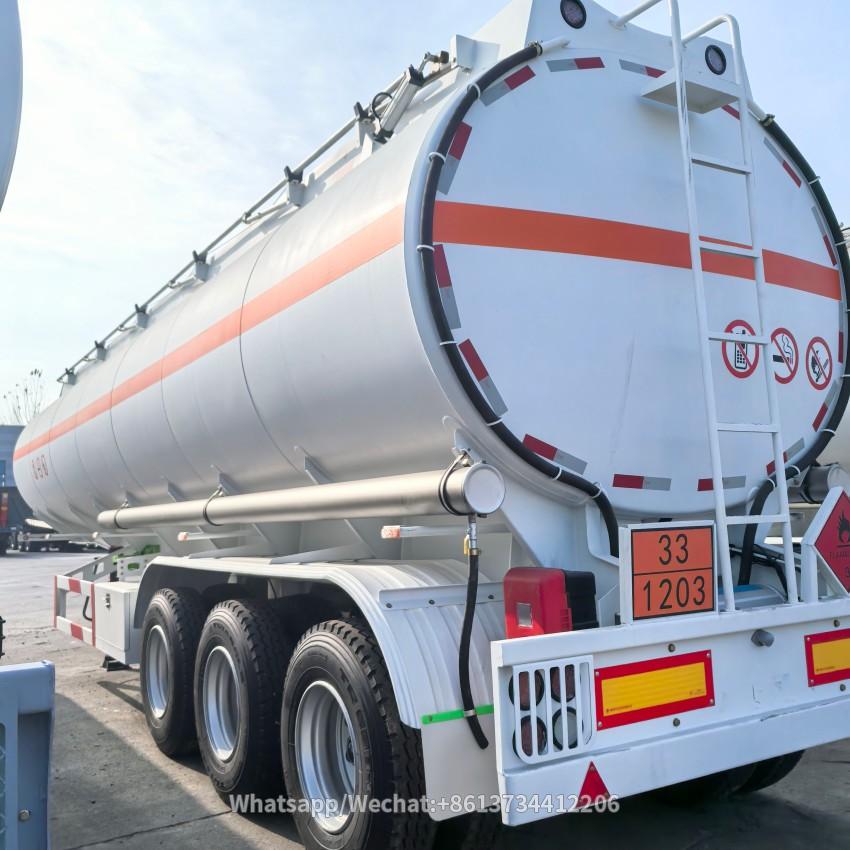

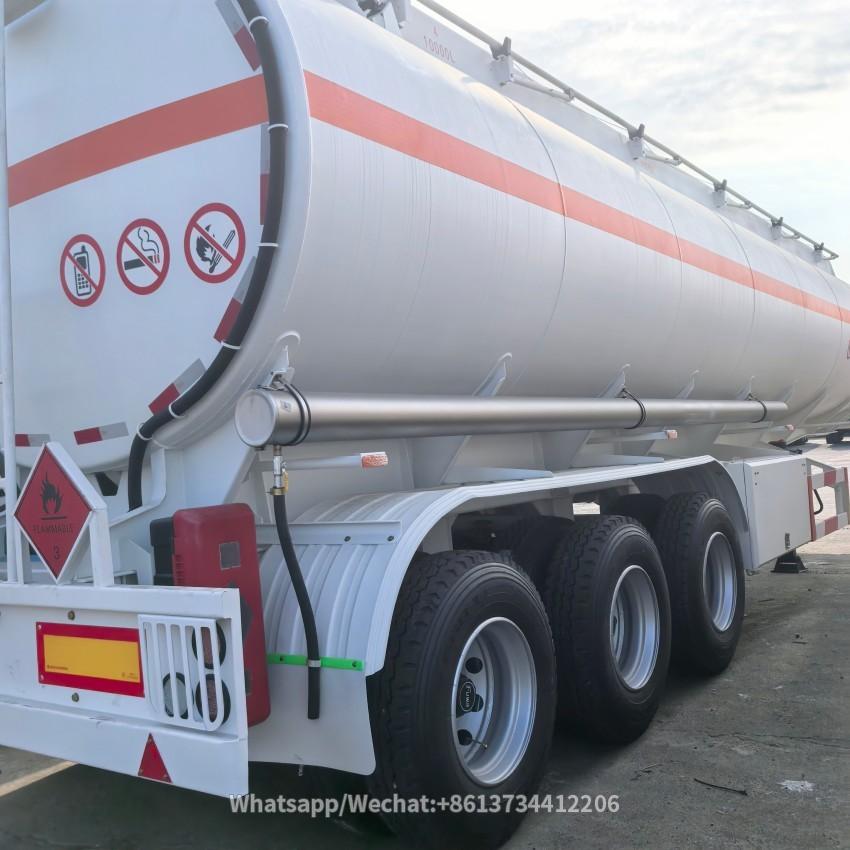

3 Axles 40000liters Fuel Trailer Tanker Pictures and Delivery
FAQ for 3 Axles 40000liters Fuel Trailer Tanker
Q: Are you Dealer or Factory for 3 Axles 40000liters Fuel Trailer Tanker?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the 3 Axles 40000liters Fuel Trailer Tanker?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the 3 Axles 40000liters Fuel Trailer Tanker by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your 3 Axles 40000liters Fuel Trailer Tanker quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for 3 Axles 40000liters Fuel Trailer Tanker. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for 3 Axles 40000liters Fuel Trailer Tanker, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for 3 Axles 40000liters Fuel Trailer Tanker?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for 3 Axles 40000liters Fuel Trailer Tanker?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for 3 Axles 40000liters Fuel Trailer Tanker?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for 3 Axles 40000liters Fuel Trailer Tanker:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for 3 Axles 40000liters Fuel Trailer Tanker:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the 3 Axles 40000liters Fuel Trailer Tankerand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the 3 Axles 40000liters Fuel Trailer Tankerin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
3 Axles 40000liters Fuel Trailer Tankermileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for 3 Axles 40000liters Fuel Trailer Tanker:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for 3 Axles 40000liters Fuel Trailer Tanker:
“ Howo Truck Export can provide timely service, the 3 Axles 40000liters Fuel Trailer Tankertrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order 3 Axles 40000liters Fuel Trailer Tankerand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in 3 Axles 40000liters Fuel Trailer Tanker of our company, don’t hesitate to contact me, the best service is waiting for you !
