Description
Howo Heavy Truck Function and Introduction:
Howo Heavy Truck ( also called howo truck, Sinotruk HOWO, howo truck head, Howo 400hp Truck Price, Howo Heavy Truck, Sinotracker, howo primemover, Camion Sinotruk) widely used in transportation and connect with various kind of trailers.
Howo Heavy Truck is one of the brand for SINOTRUK, and SINOTRUK mainly organizes the development, production and sale of various trucks, special vehicles, buses, special vehicles, refitted vehicles, special school buses, engines, spare parts, and special chassis.
Howo Heavy Truck Specifications
|
Howo Heavy Truck |
|||
|
Truck Model |
ZZ4257V3247B1 (Right/Left Hand Drive) |
||
|
Dimension(Lx W xH)（mm） |
6800x2490x3668 |
||
|
Approaching angle/Departure angle（°） |
16/70 |
||
|
Overhang(front/rear) (mm) |
1500/700,725 |
||
|
Wheel base (mm) |
3200+1400,3225+1350 |
||
|
Max speed（km/h） |
102 |
||
|
Curb weight（kg） |
11930 |
||
|
Loading Weight（kg） |
40000 |
||
|
Engine (Steyr technology, made in China) |
Model |
430HP，WP12.430E201,water-cooled，four Strokes,6 cylinders in line with water cooling，turbocharged and intercooling, directly injection |
|
|
|
Fuel type |
Diesel |
|
|
|
Emission |
EURO2 |
|
|
Fuel tanker capacity（L） |
400 |
||
|
Transmission |
Model |
HW19710 +HW50/70(PTO) SINOTRUK GEARBOX 10-forward and 2-reserve speed Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
|
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|
|
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
|
Auxiliary brake |
engine exhaust brake |
|
|
Steering system
|
Model |
ZF8118,hydraulic steering with power assistance |
|
|
Front axle |
VGD95,1x9500 KGS Steering with double T-cross section beam |
||
|
Rear axle |
HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
||
|
Color |
White; Yellow; Blue; Orange; Black; Red or others |
||
|
Tyre |
315/80R22.5 11units optional 13R22.5, 1200R20, 1200R24, 12R22.5 |
||
|
|
Operating voltage |
24 V, negative grounded |
|
|
Electrical system |
Battery |
2X12V/165Ah |
|
|
|
Alternator |
3-phase, 28V-1500kw |
|
|
|
Starter |
7.5Kw/24V |
|
|
|
Others |
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
|
|
Cab |
HW76,(one sleeping, with air-condition) all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
||

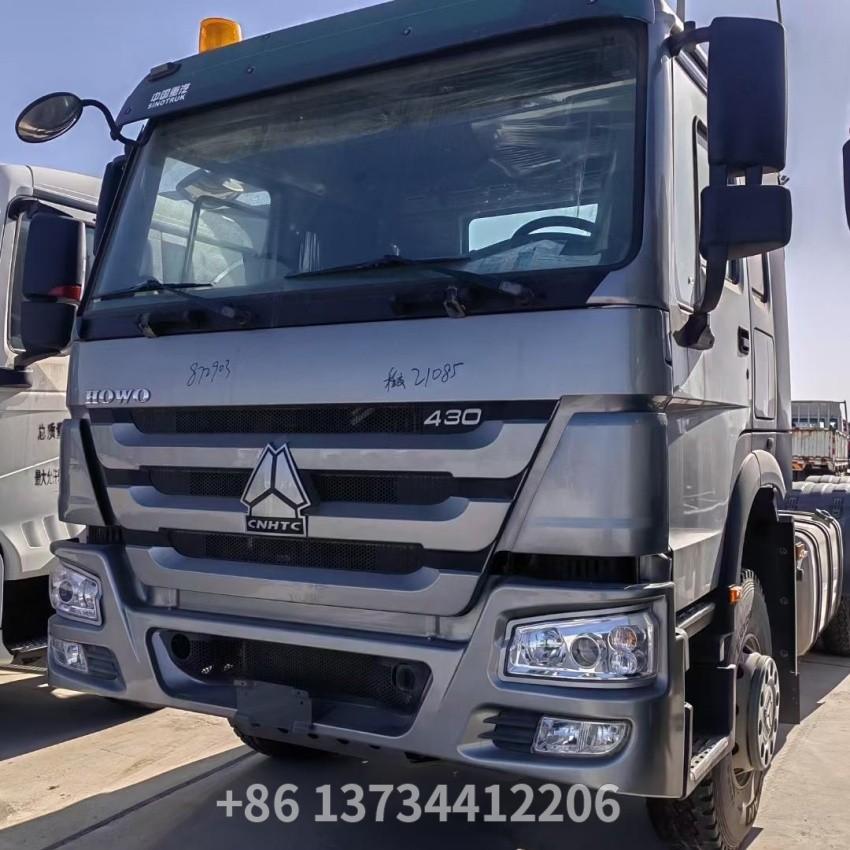

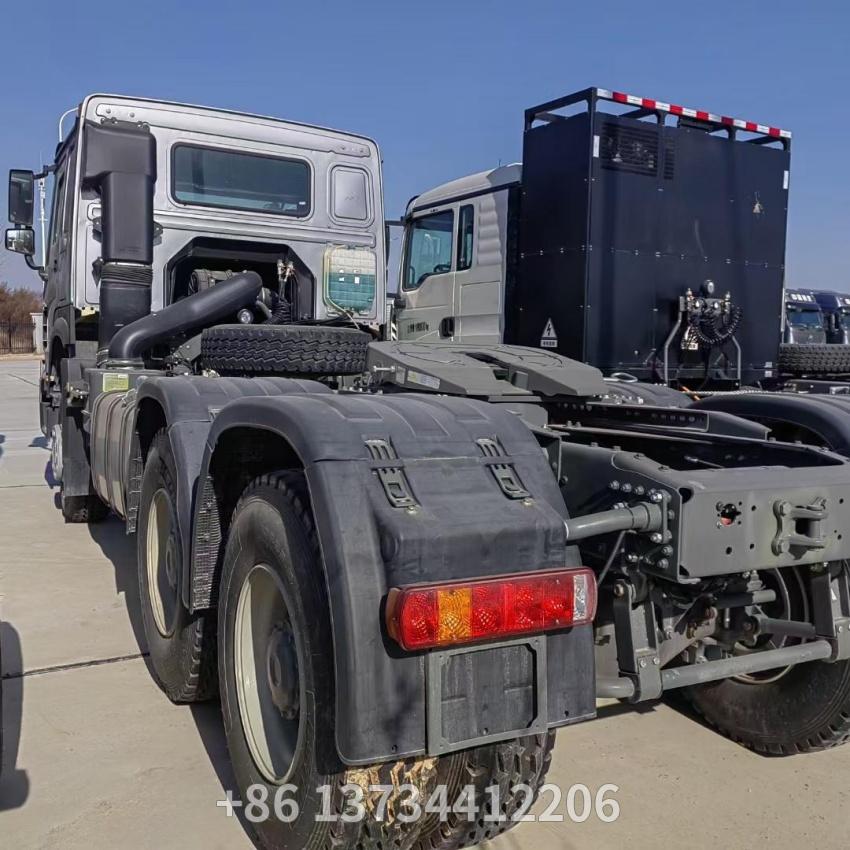

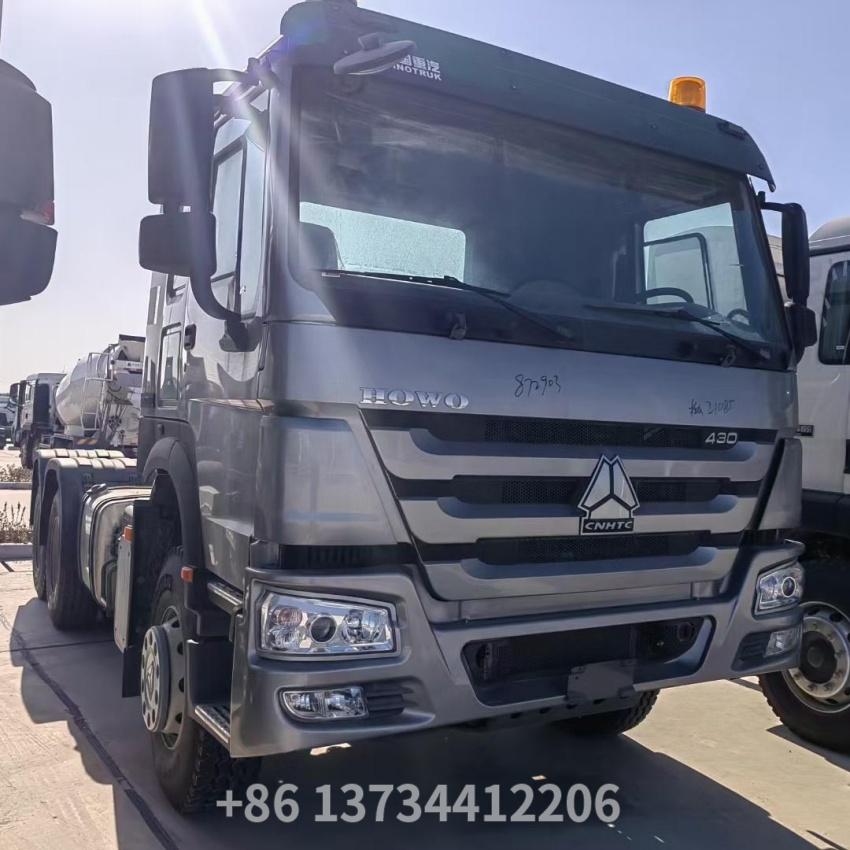

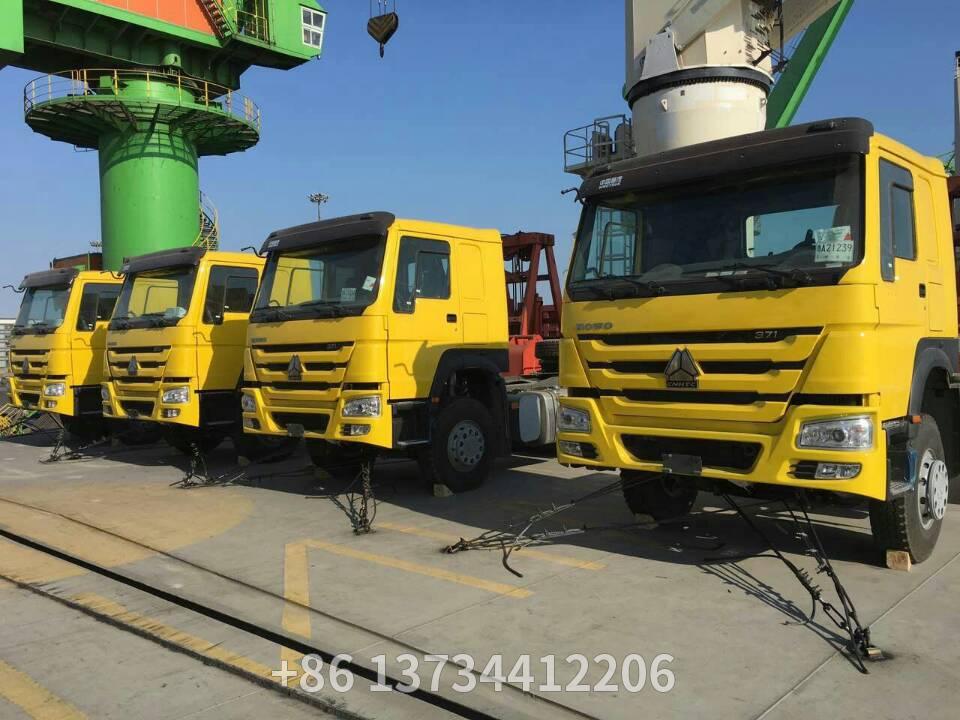

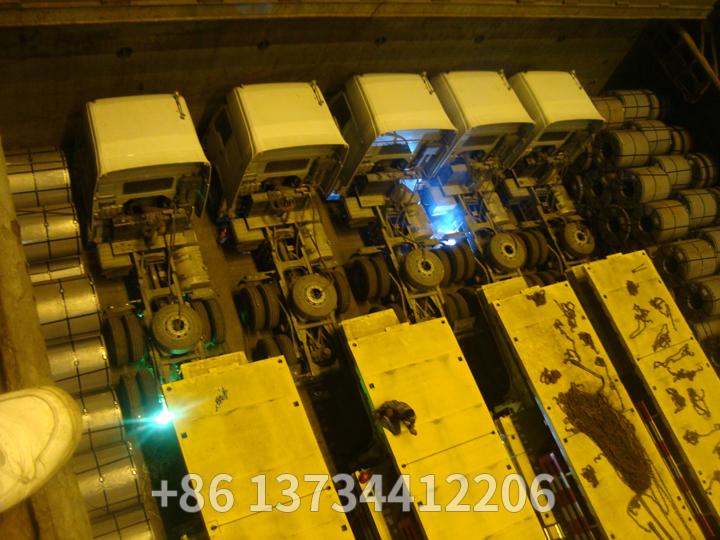

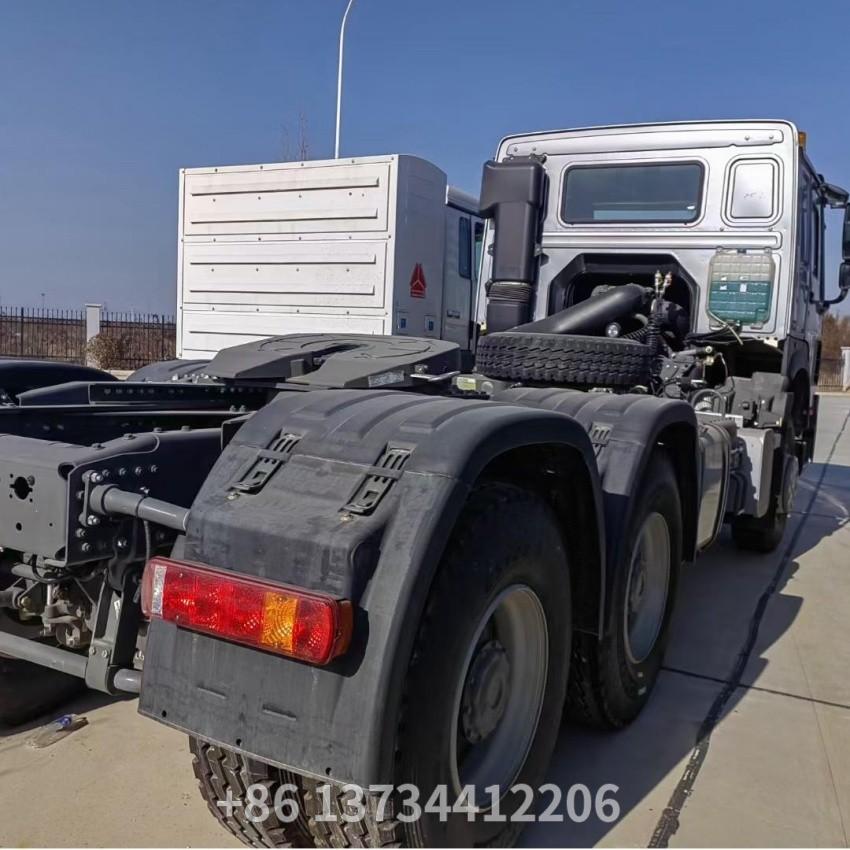

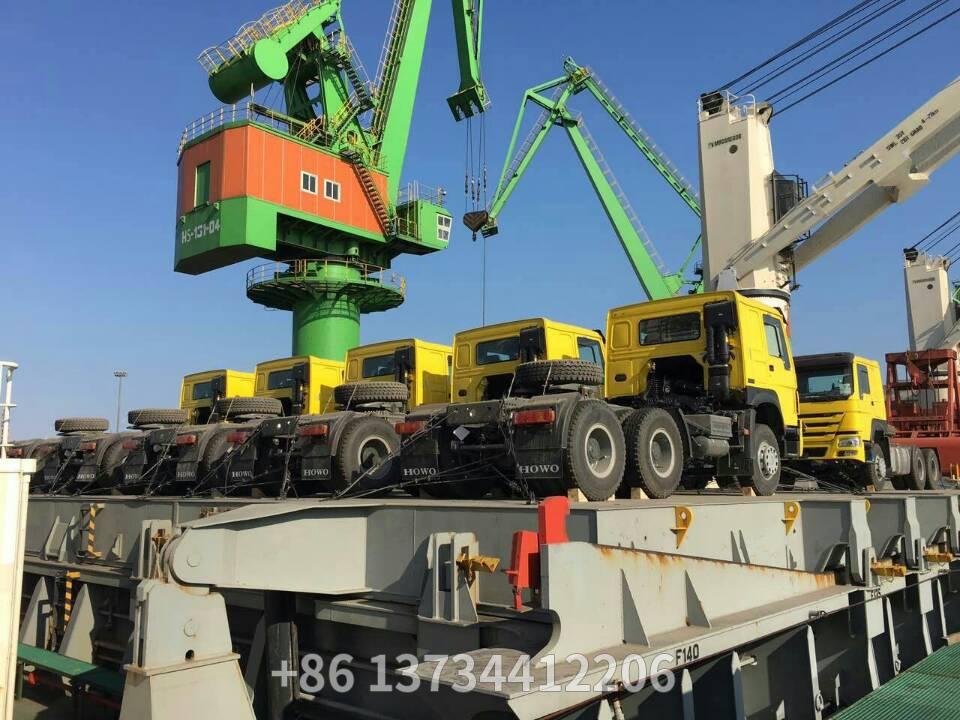

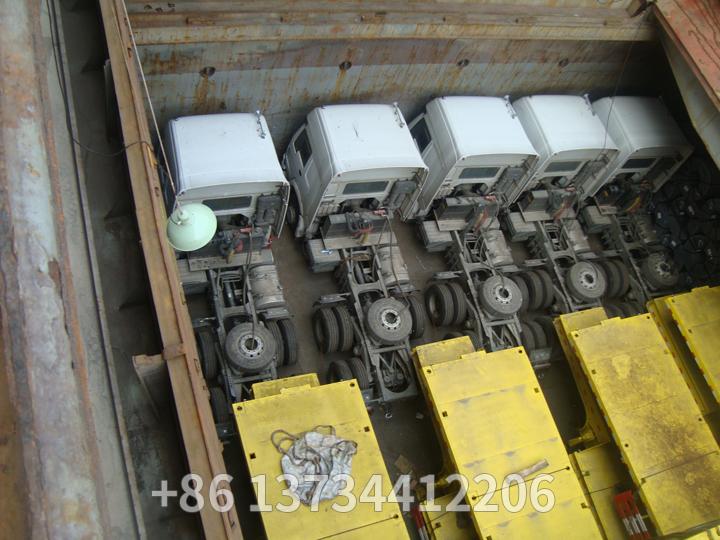

Howo Heavy Truck Pictures and Delivery
FAQ for Howo Heavy Truck
Q: Are you Dealer or Factory for Howo Heavy Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Howo Heavy Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Howo Heavy Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Howo Heavy Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Howo Heavy Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Howo Heavy Truck, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Howo Heavy Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Howo Heavy Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Howo Heavy Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Howo Heavy Truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Howo Heavy Truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Howo Heavy Truck and the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Howo Heavy Truck in the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Howo Heavy Truck mileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Howo Heavy Truck::
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Howo Heavy Truck::
“ Howo Truck Export can provide timely service, the Howo Heavy Truck trucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Sady
“ I order Howo Heavy Truck and the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr. Ramon
