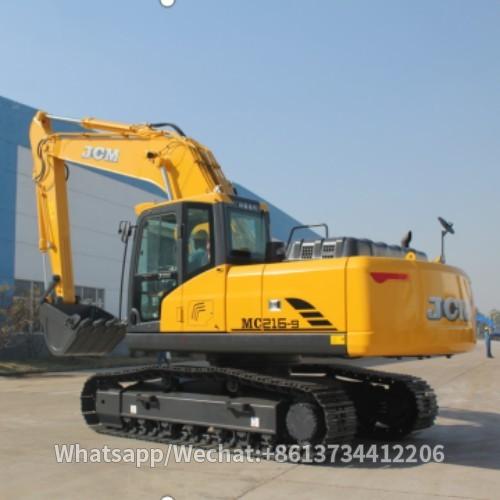

MC216 Hydraulic Crawler Excavator
Technical Specifications
|
Engine |
Travel System |
|||||||||||||
|
Model |
CUMMINS QSB7 |
Travel motors |
KYB; Variable axial piston motor |
|||||||||||
|
Type |
High pressure and common rail, water cooling,Six-cylinder in line, turbocharging |
Support roller quantities |
2×7 |
|||||||||||
|
Carrier roller quantities |
2×2 |
|||||||||||||
|
No. of cylinder |
6 |
Travel shoes |
2×46 |
|||||||||||
|
Bore and stroke |
107mm×124mm |
Travel speed |
3.15/5.15km/h |
|||||||||||
|
Displacement |
6.7L |
Drawbar pulling force |
214kN |
|||||||||||
|
Power output |
124kW/2050rpm |
Grade ability |
70% (35°) |
|||||||||||
|
Ground clearance |
470mm |
|||||||||||||
|
Hydraulic System |
Cab ＆ Control |
|||||||||||||
|
Pump |
KPM |
Cab |
All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner |
|||||||||||
|
Type |
variable plunger–piston pump |
|||||||||||||
|
Max. discharge flow |
2x213L/min |
|||||||||||||
|
Max. discharge pressure |
||||||||||||||
|
Boom, arm and bucket |
34.3MPa |
Control |
Two hand levers and two foot pedals for travel Two hand levers for excavating and swing; Electric rotary-type engine throttle |
|||||||||||
|
Travel circuit |
34.3MPa |
|||||||||||||
|
Swing circuit |
25.5MPa |
|||||||||||||
|
Control circuit |
3.9MPa |
Boom, Arm ＆ Bucket |
||||||||||||
|
Pilot control pump |
Gear pump |
Boom cylinder |
120mm×85mm×1335mm |
|||||||||||
|
Main control valve |
Positive control |
Arm cylinder |
135mm×95mm×1490mm |
|||||||||||
|
Oil cooler |
Air cooled type |
Bucket cylinder |
115mm×80mm×1120mm |
|||||||||||
|
Swing System |
Refilling Capacities＆lubrications |
|||||||||||||
|
Swing motor |
KPM |
Fuel tank |
330L |
|||||||||||
|
Swing motor type |
Oblique plate piston motor |
Cooling system |
28L |
|||||||||||
|
Brake |
Pressure released |
Engine oil |
22L |
|||||||||||
|
Parking brake |
Mechanical brake |
Hydraulic oil tank |
220L Tank oil level |
|||||||||||
|
Swing speed |
0-11r/min |
400L Hydraulic system |
||||||||||||
|
Bucket |
||||||||||||||
|
Type |
Backhoe bucket |
|||||||||||||
|
Bucket capacity |
0.90m3 (SAE) |
|||||||||||||
|
Bucket width |
1267mm |
|||||||||||||
|
Arm Type |
|
|||||||||||||
|
A |
Max. digging height |
10095mm |
||||||||||||
|
B |
Max. dumping height |
7190mm |
||||||||||||
|
C |
Max. digging depth |
6490mm |
||||||||||||
|
D |
Max. vertical digging depth |
5915mm |
||||||||||||
|
E |
Max. Depth cut for 2440m(8')Level Bottom |
6295mm |
||||||||||||
|
F |
Max. digging distance |
9860mm |
||||||||||||
|
G |
Max. digging radius at ground level |
9675mm |
||||||||||||
|
H |
Min. swing radius of work equipment |
2970mm |
||||||||||||
|
Digging Force (ISO6015) Unit: kN |
||||||||||||||
|
Arm length |
2925mm |
|||||||||||||
|
Bucket digging force |
135kN |
|||||||||||||
|
Arm digging force |
99kN |
|||||||||||||
|
Arm Type 2925mm |
||||||||||||||
|
A |
Overall length |
9625mm |
I |
Tread |
3360mm |
|||||||||
|
B |
Ground contact length (Transportation) |
4915mm |
J |
Track length |
4140mm |
|||||||||
|
C |
Overall height(to top of boom) |
3075mm |
K |
Track gauge |
2200mm |
|||||||||
|
D |
Overall width |
2800mm |
L |
Track width |
2800mm |
|||||||||
|
E |
Overall height(to top of cab) |
3055mm |
M |
Shoe width |
600mm |
|||||||||
|
F |
Counter weight ground clearance |
|||||||||||||
