Description
Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck Function and Introduction:
Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck
1. The vehicle body is made of high-quality steel, advanced technology, and strict production and manufacturing. The vehicle has a reasonable structure, reliable performance, easy operation, and beautiful appearance.
2. The frames of the series of semi-trailers are all through-beam structures, and the longitudinal beams are straight or gooseneck. The web height ranges from 400mm to 550mm manganese plate welding, the longitudinal beams are welded by automatic buried welding, the frame is shot peened, and the cross beams penetrate the longitudinal beams and welded as a whole.
3. The suspension adopts non-independent steel plate stamping rigid suspension, which is made of series steel leaf springs and suspension supports; the structure is reasonable, with strong rigidity and strength, used to support loads and reduce impact.
Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck Specifications
Sinotruk Heavy Duty Howo TX 8x4 12wheels Dump Truck Specifications
|
Truck Model |
ZZ1317N4667(LHD/RHD) |
||||
|
Truck Brand |
SINOTRUK –HOWO TX |
||||
|
Dimension |
11500*2496*3490mm |
||||
|
Driving Style |
Right Hand Driving |
||||
|
Tanker body |
TANK CAPACITY: 30,000 LITERS COMPARTMENT: 5 COMPARTMENT With 5 manhole and 5 discharge valve and 5 bottom valves Carbon STEEL body 6mm end 6mm |
||||
|
Approaching angle/Departure angle（°） |
19/26 |
||||
|
Overhang(front/rear) (mm) |
1500/1739 |
||||
|
Wheel base (mm) |
WHEEL BASE: 1800 + 4600 + 1350MM |
||||
|
Max speed（km/h） |
75 |
||||
|
Maximum gradeability (%) |
40 |
||||
|
Minimum ground clearance(mm) |
314 |
||||
|
Minimum turning circle (m) |
20 |
||||
|
Curb weight（kg） |
13290 |
||||
|
Loading Weight（kg） |
25000 |
||||
|
Fuel tanker capacity（L） |
400 |
||||
|
Fuel consumption(L/km) |
28L/100 km |
||||
|
Clutch |
Single-plate dry clutch Φ430mm |
||||
|
Engine Model (Steyr technology, made in China) |
Fuel type |
Diesel |
|||
|
Horse Power, max（kw/rpm） |
400HP，247/2200 |
||||
|
Emission |
EURO II |
||||
|
Model |
WP10.380E22 (EURO II) 4 Stroke Direct Injection Diesel RATED POWER:336 HP NO OF CYLINDER: 6 Cylinder in-line with water cooling, turbo intercooler. |
||||
|
Bore |
126mm |
||||
|
Stroke |
130mm |
||||
|
Compression ratio |
29.8hp/l |
||||
|
Specific fuel consumption |
195g/kwh |
||||
|
Transmission |
Model |
HW19710 10 forwarder 2 reverse |
|||
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Auxiliary brake |
Engine exhaust brake |
||||
|
Steering system |
Model |
ZF8098 Hydraulic Steering with power assistance. |
|||
|
Front axle |
VGD95 |
||||
|
Rear axle |
MCX16ZG Ratio 4.8 |
||||
|
Tyre |
315/80 R22.5 |
||||
|
COLOR |
RED,WHITE ,YELLOW ETC OPTIONAL |
||||
|
Electrical system |
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
||||
|
Starter |
7.5Kw/24V |
||||
|
Cab |
HW77L 1 Sleeper all Steel forward control; 2 arm windscreen wiper system with 3 speed. |
||||

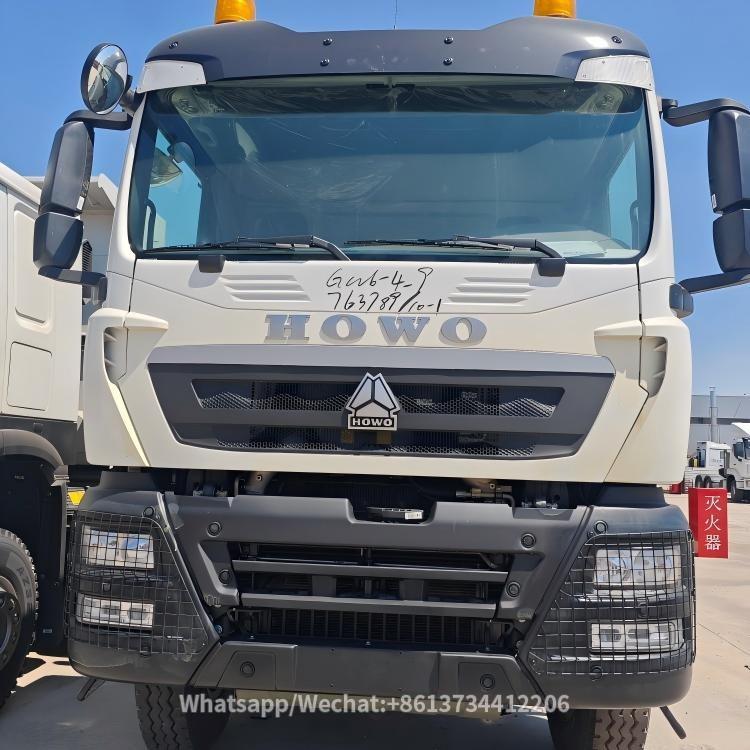

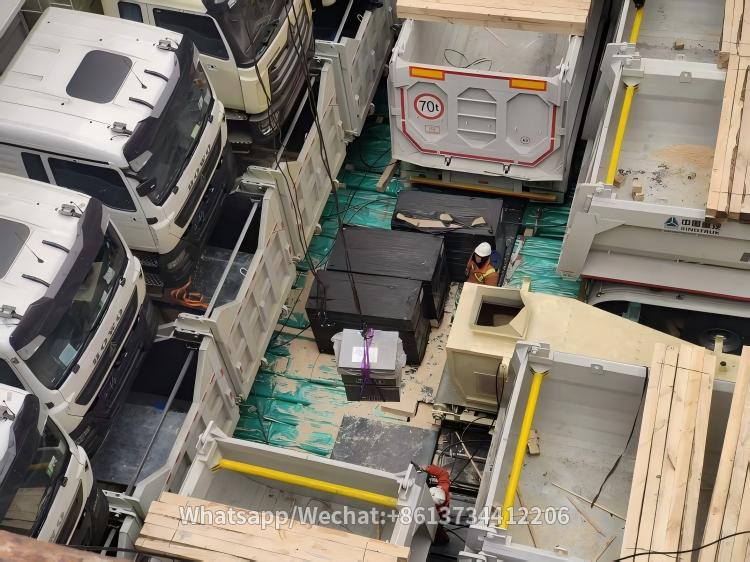

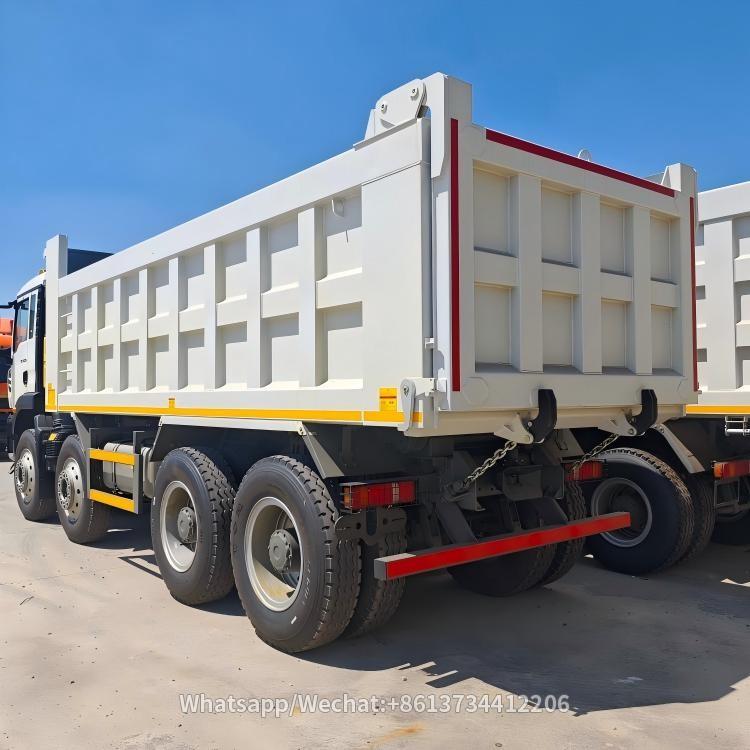

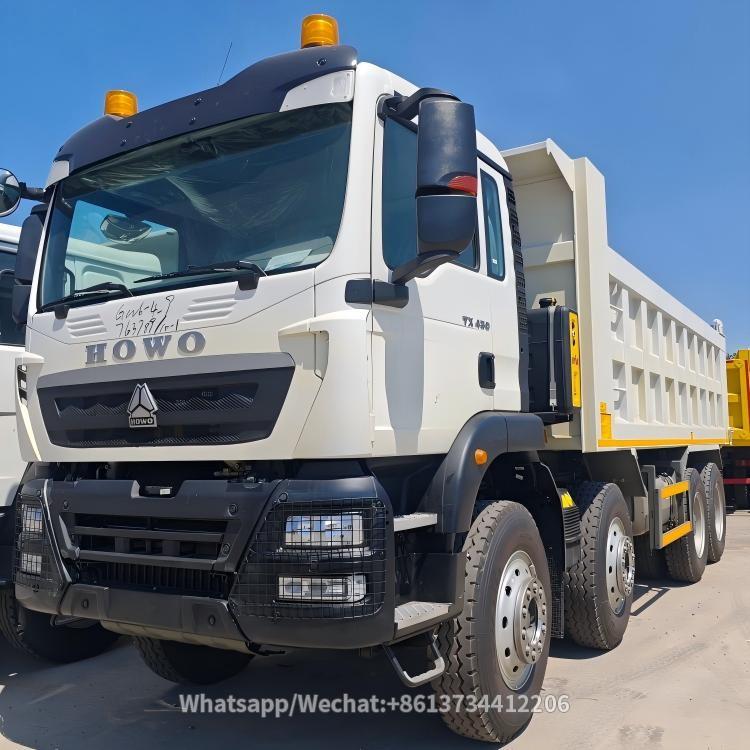

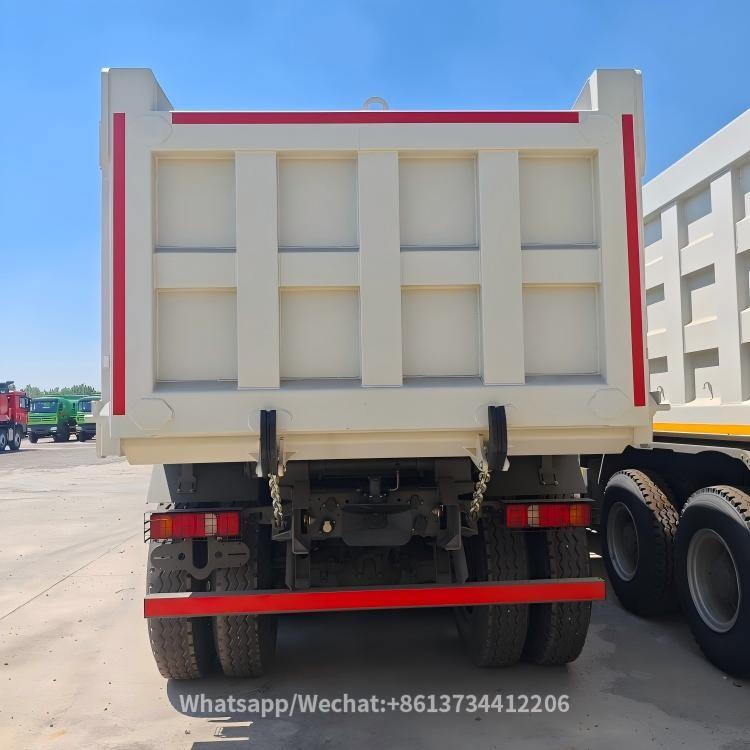

Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck Pictures and Delivery
FAQ for Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck
Q: Are you Dealer or Factory for Sinotruk Heavy Duty Howo TX 8x4 wheeler Dump Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Sinotruk Heavy Duty Howo TX 8x4 wheeler Dump Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Sinotruk Heavy Duty Howo TX 8x4 wheeler Dump Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Sinotruk Heavy Duty Howo TX 8x4 wheeler Dump Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Sinotruk Heavy Duty Howo TX 8x4 wheeler Dump Truck, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Sinotruk Heavy Duty Howo TX 8x4 wheeler Dump Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Sinotruk Heavy Duty Howo TX 8x4 wheeler Dump Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
Our Advantages for Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck:
20 Years Of Production Experience
Advanced Production Line
Strong Scientific Research Strength
Reliable Quality
Professional And Timely Service
Compulsory maintenance for Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck:
In order to eliminate particles, burrs and other harmful magazines worn down by the initial operation of the Sinotruk Heavy Duty Howo TX 8x4 12wheels Dump Truckand the loosening of various connectors caused by the initial operation, eliminate the hidden trouble, improve the reliability of the vehicle, make the Sinotruk Heavy Duty Howo TX 8x4 12wheels Dump Truckin the best working condition, extend the service life of the vehicle, and maintain the economic interests of customers, during the new car running, within the limited mileage, Measures to require customers to come to service station for maintenance according to the specified items.
Sinotruk Heavy Duty Howo TX 8x4 12wheels Dump Truckmileage between 3000-5000 km or within 3 months from the date of purchase, must go to the service station for compulsory maintenance of the vehicle.
Regular maintenance for Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck:
After the compulsory maintenance of the new car, the vehicle will be maintained at service station every certain mileage according to the regular maintenance project. The main content of regular maintenance is to check, maintain and eliminate hidden trouble so as to reduce the failure of the vehicle.
Customer Feedback for Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck:
“ Howo Truck Export can provide timely service, the Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Trucktrucks already put into use more than one year, all goes well, I also buy spare parts its good quality, they are trustable. ”
--Mr.Siadou kokou
“ I order Sinotruk Heavy Duty Howo TX 8x4 12wheels Dump Truckand the shipping and production is faster than other supplier, i will introduce this company to my friends ”
--Mr.Nana Wilberforce
If you are interested in Sinotruk Heavy Duty Howo TX 8x4 12wheeler Dump Truck of our company, don’t hesitate to contact me, the best service is waiting for you !
