Description
Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck Function and Introduction:
Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck is a vehicle used for watering urban streets and mining site. The water tanker truck is equipped with front flushing (spraying) and rear sprinkling, with side spraying, a working platform behind the tank, and a greening sprinkler cannon installed on the platform. The sprinkler cannon can rotate 360° and can be continuously adjusted to straight flushing, columnar or mist. The range is 15-30 meters, the water sprinkling width is ≧14 meters, with safety guardrails, equipped with Hangzhou Weilong sprinkler pump or Suizhou sprinkler pump, the pump can be self-priming and self-draining, installed with a filter, with a fire interface, can be fed through a fire hydrant, with a self-flow valve, and an optional 20-meter greening reel can be installed on the vehicle. Pesticides can be sprayed, and the tank is sprayed with metallic paint.
Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck is consist of a tank truck mainly includes the following parts:
1. Tank body
The tank body structure of the water sprinkler truck is elliptical or square, made of steel plate. The water tank of the whole vehicle tank body is 2-3 chambers, and there is a through hole at the lower end of the middle partition. The partition inside the tank has a wave-proof function. To reduce the impact of the liquid in the tank when the car is driving. An anti-rotation plate is installed at the water outlet to prevent the vortex from affecting the water pressure when sprinkling water. The surface is painted with anti-rust paint and decorative paint.
2. Tank mouth
Tank mouth assembly: The large cover is fastened to the tank door neck plate by bolts, connected by a support pin and a guard plate small cover. Turning the handle on the small cover clockwise can tighten the small cover. Reverse, after disengaging the ear plate, the small cover can be opened. There is a 30 hole on the large cover so that the pressure in the tank is basically consistent with the atmospheric pressure during the water addition process.
3. Power take-off
Special power take-off that matches the gearbox of each model, pneumatically or manually operated, pull the operating switch backward, the power take-off gear enters the meshing position, drives the water pump to work through the transmission shaft, and the switch returns forward, and the water pump stops working.
4. Water pump
The self-priming impeller pump is a special pump for water sprinkler trucks.
5. Ball valve
The water sprinkler truck is equipped with 7 Φ50mm stainless steel ball valves, 7, 8, 9, and 10 in Figure 1 are used to adjust the water spraying. One Φ50mm aluminum tank ball valve, 4 in Figure 1, is used to control pumping or water spraying. It is opened when pumping and closed when spraying. One Φ65mm fire ball valve can be connected to the fire hose for emergency fire extinguishing.
6. Sprinkler
The water sprinkler truck has a duckbill nozzle or a round-headed flushing nozzle in front, a cylindrical sprinkler weight at the back, and a side-spraying lotus head. An anti-aircraft spray gun is installed at the rear of the car.
Sprinklers are generally used to wash streets, remove dust and cool down. The spray direction and angle of the sprinkler can be changed by adjusting the nozzle thread. The high-altitude spray gun can be used for urban and rural landscaping and emergency fire trucks. The puff nozzle can wash away the dust stirred up by the sprinkler in the middle of the road, playing a role in cleaning the air.
Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck Specifications
|
Truck Model |
ZZ1317N4667(LHD/RHD) |
||||
|
Truck Brand |
SINOTRUK –HOWO |
||||
|
Dimension |
11500*2496*3490mm |
||||
|
Driving Style |
Right/Left Hand Driving |
||||
|
Tanker body |
TANK CAPACITY: 35,000 LITERS Carbon STEEL body 6mm end 6mm |
||||
|
Approaching angle/Departure angle（°） |
19/26 |
||||
|
Overhang(front/rear) (mm) |
1500/1739 |
||||
|
Wheel base (mm) |
WHEEL BASE: 1800 + 4600 + 1350MM |
||||
|
Max speed（km/h） |
75 |
||||
|
Maximum gradeability (%) |
40 |
||||
|
Minimum ground clearance(mm) |
314 |
||||
|
Minimum turning circle (m) |
20 |
||||
|
Curb weight（kg） |
13290 |
||||
|
Loading Weight（kg） |
25000 |
||||
|
Fuel tanker capacity（L） |
400 |
||||
|
Fuel consumption(L/km) |
28L/100 km |
||||
|
Clutch |
Single-plate dry clutch Φ430mm |
||||
|
Engine Model (Steyr technology, made in China) |
Fuel type |
Diesel |
|||
|
Horse Power, max（kw/rpm） |
380HP，247/2200 |
||||
|
Emission |
EURO II |
||||
|
Model |
WP10.380E22 (EURO II) 4 Stroke Direct Injection Diesel RATED POWER:336 HP NO OF CYLINDER: 6 Cylinder in-line with water cooling, turbo intercooler. |
||||
|
Bore |
126mm |
||||
|
Stroke |
130mm |
||||
|
Compression ratio |
29.8hp/l |
||||
|
Specific fuel consumption |
195g/kwh |
||||
|
Transmission |
Model |
HW19710 10 forwarder 2 reverse |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Auxiliary brake |
Engine exhaust brake |
||||
|
Steering system
|
Model |
ZF8098 Hydraulic Steering with power assistance. |
|||
|
Front axle |
VGD95 |
||||
|
Rear axle |
MCX16ZG Ratio 4.8 |
||||
|
Tyre |
315/80 R22.5 |
||||
|
COLOR |
RED,WHITE ,YELLOW ETC OPTIONAL |
||||
|
Electrical system
|
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
||||
|
Starter |
7.5Kw/24V |
||||
|
Cab |
HOWO76 1 Sleeper all Steel forward control; 2 arm windscreen wiper system with 3 speed. |
||||
Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck can make the volume and compartments as per customer want, customer can choose the most suitable as per the usage, we can also give the best recommendation as per your request.

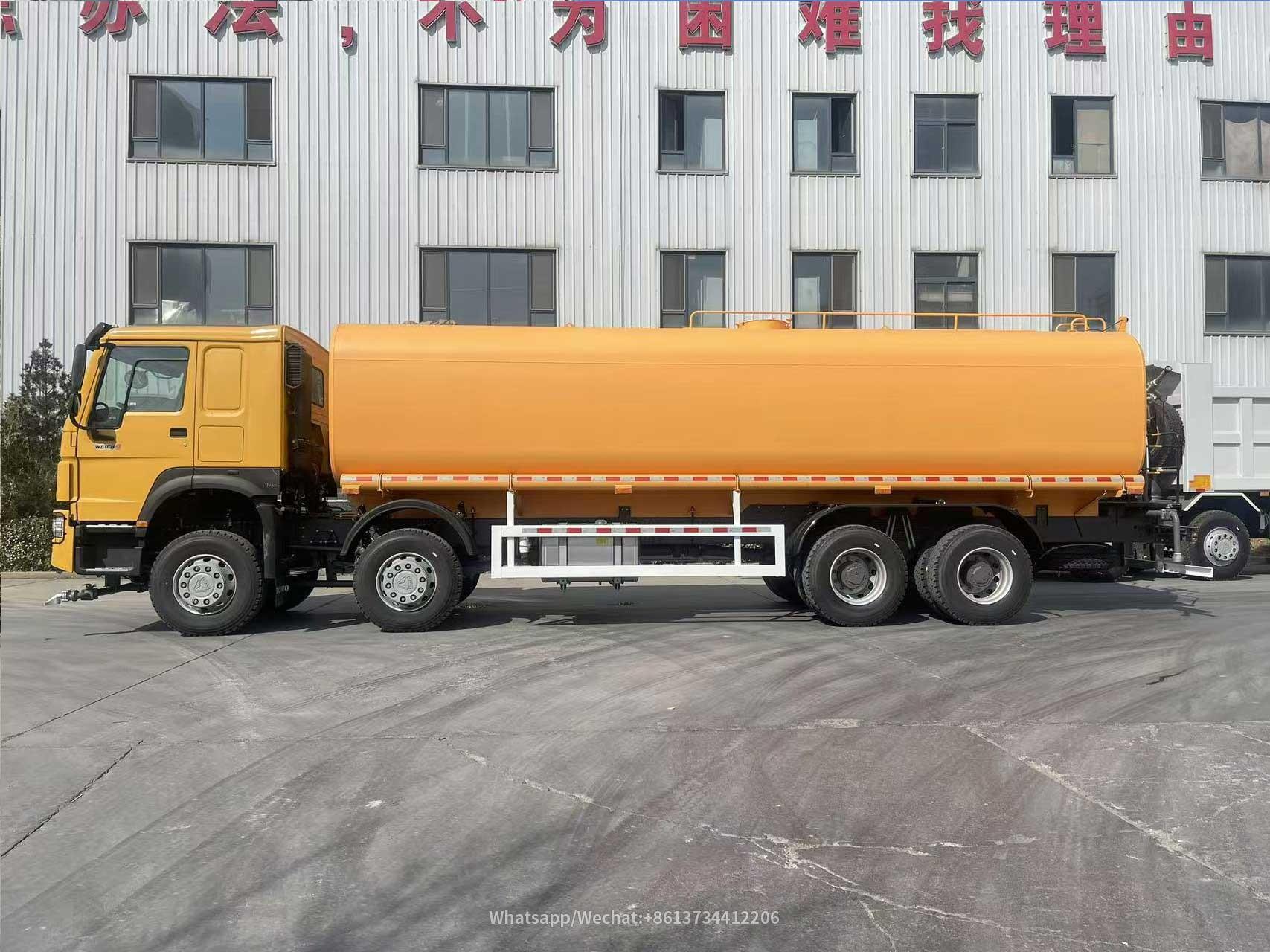

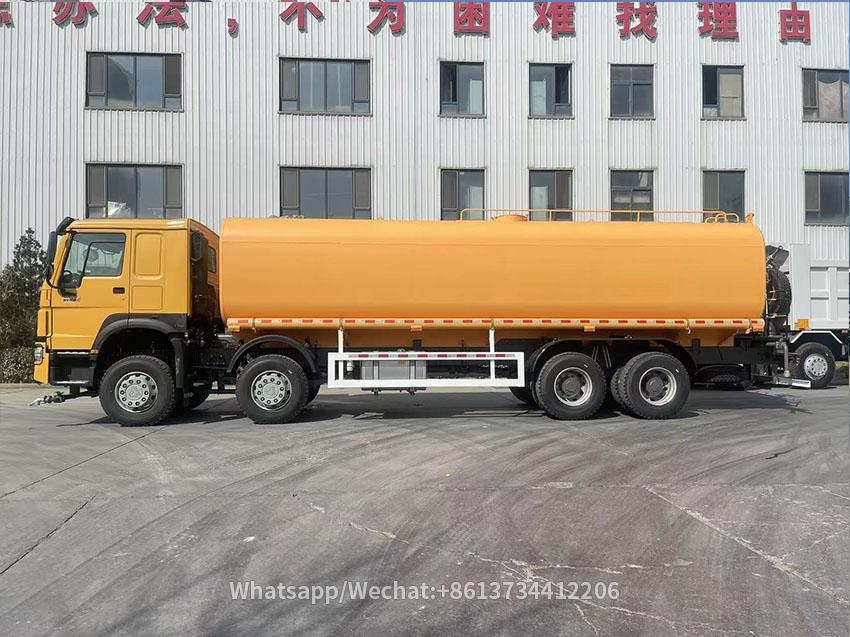

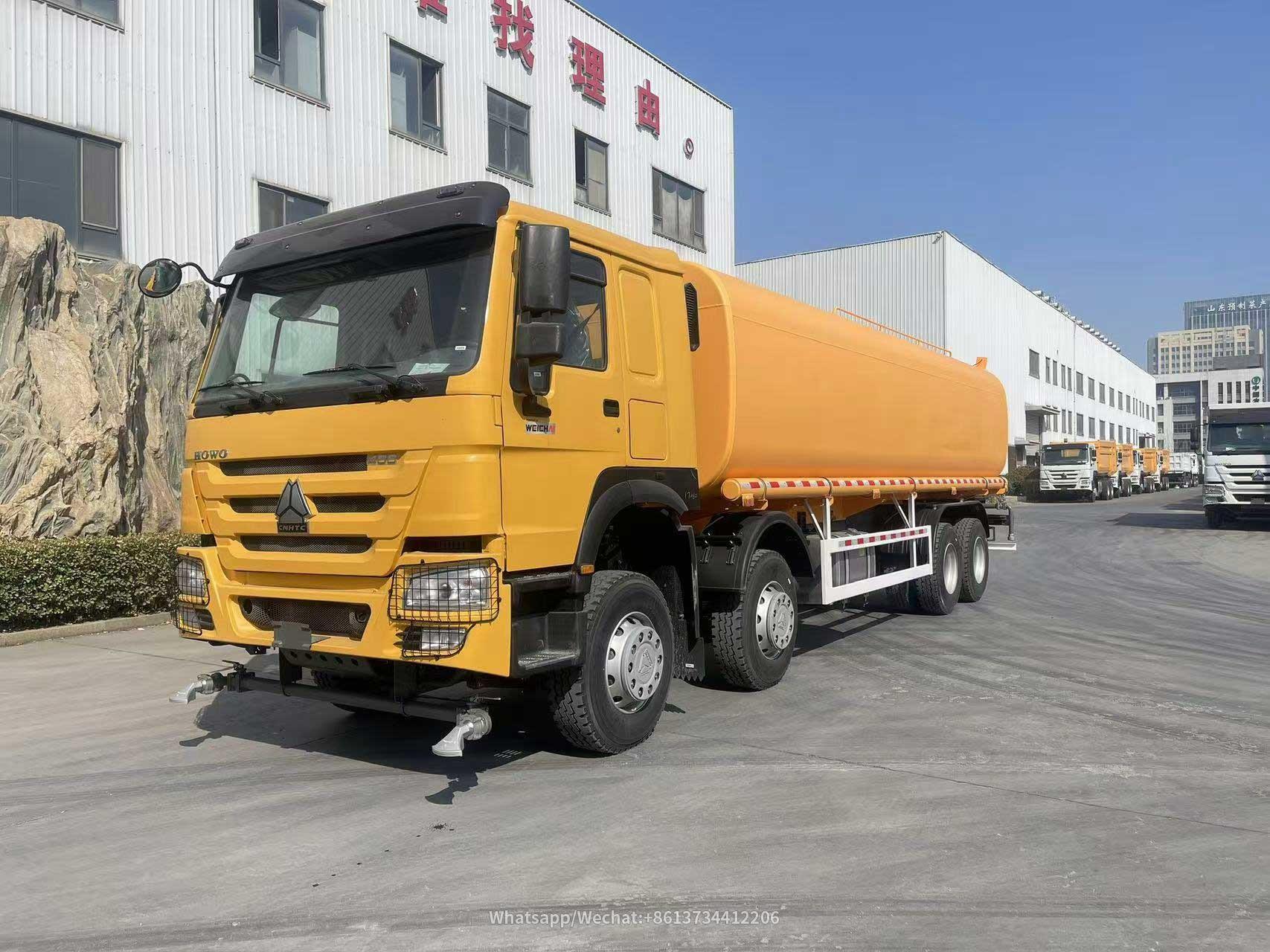

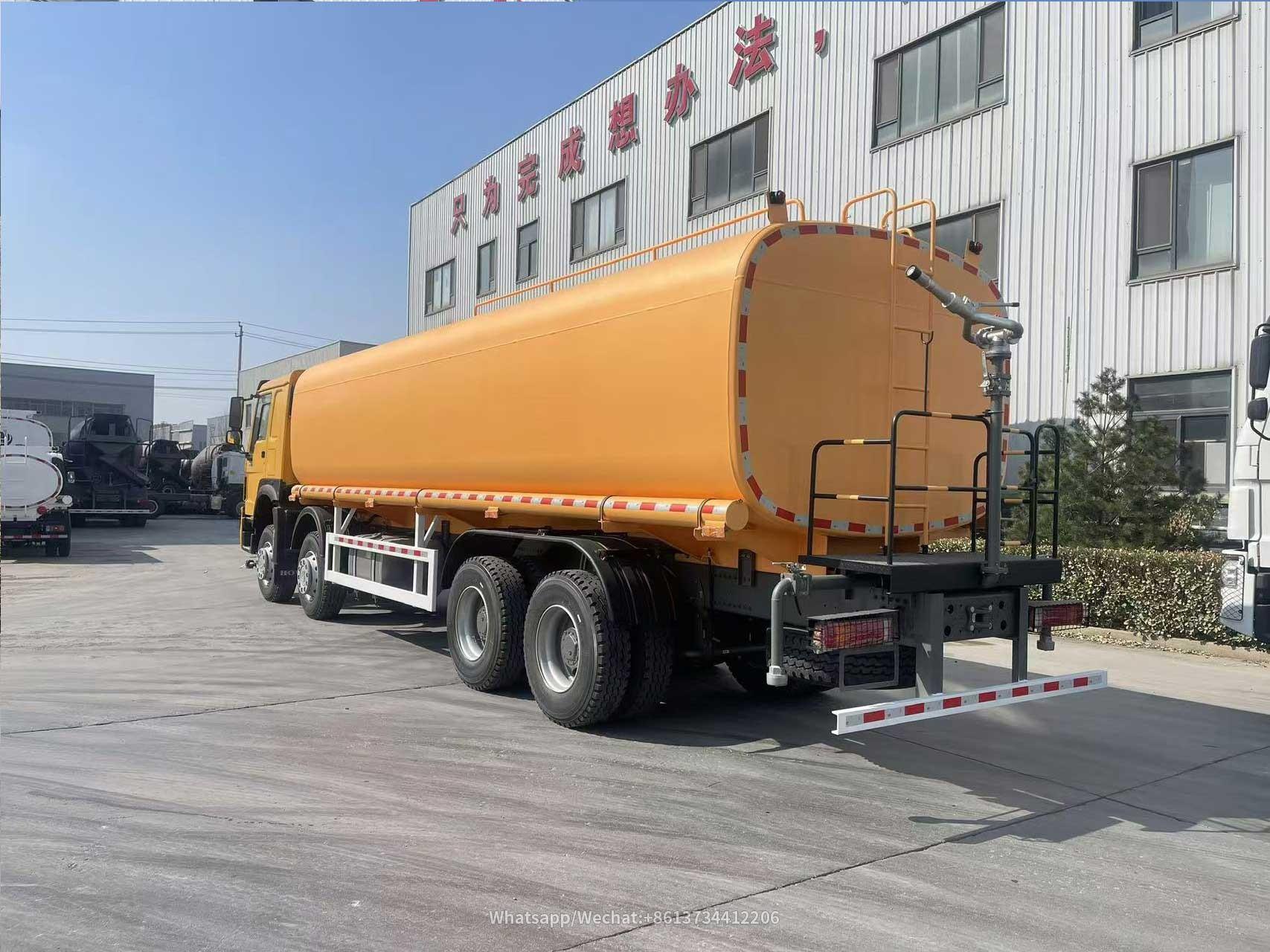

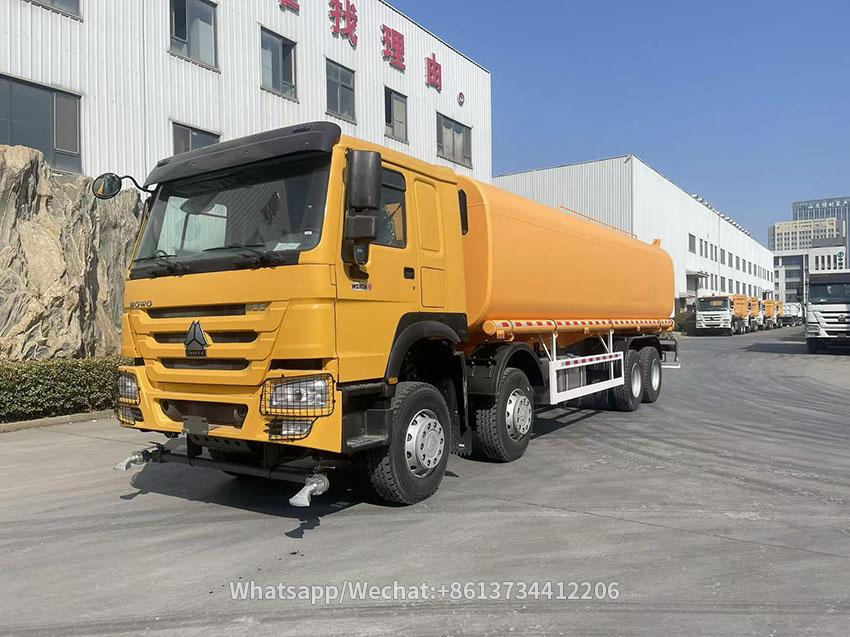

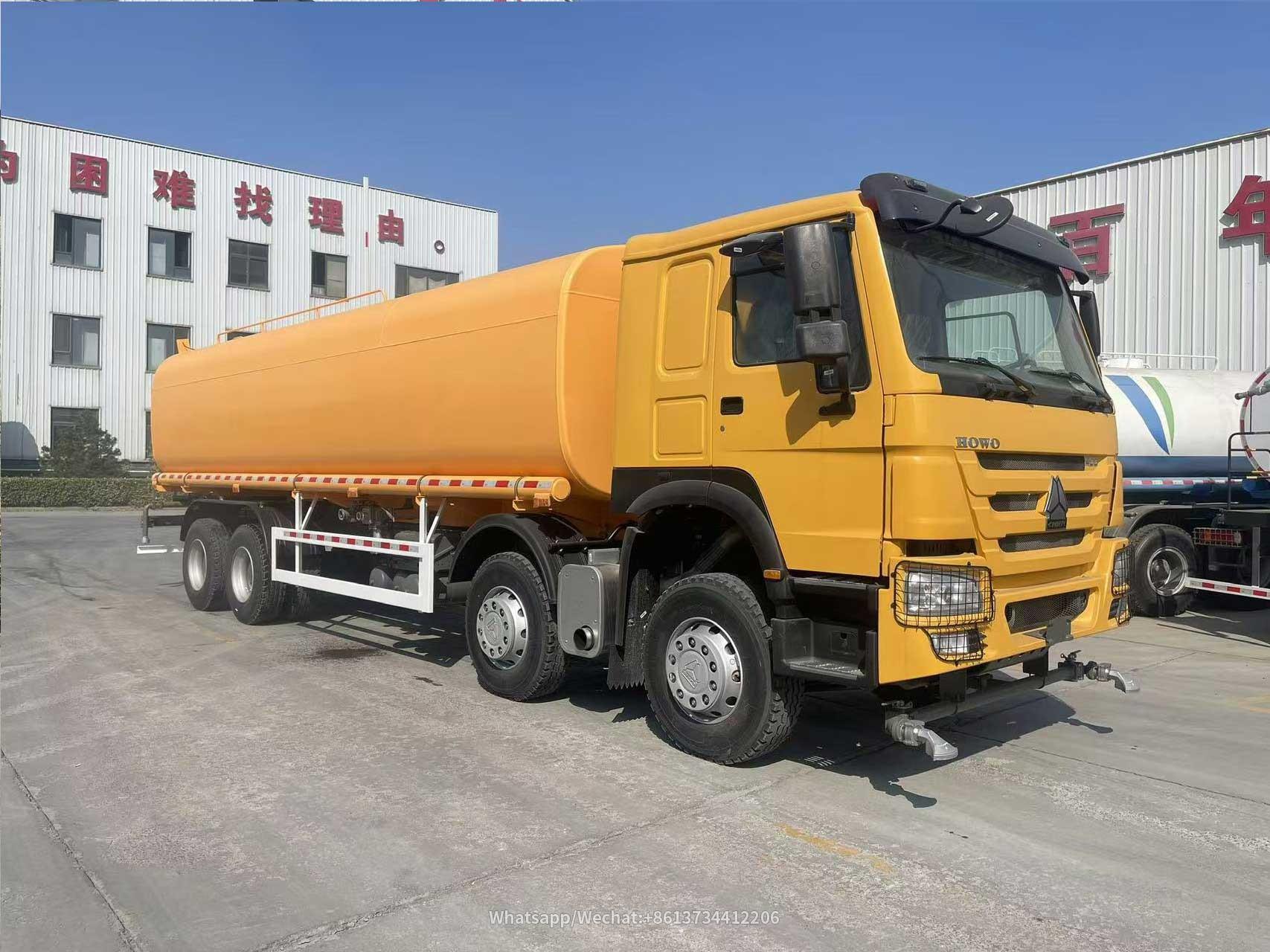

Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck Pictures and Delivery
通用装运图片
FAQ for Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck
Q: Are you Dealer or Factory for Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck?
A: We are the factory, and we produce more than 20 years already.
Q: What is shipping method of the Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck?
A: We can ship the trucks as per the destination shipping lines, choose the fastest and most Economic shipping method to ensure customer received the cargo on time and safely.
Q: I want to transport the Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck by container, is it ok?
A: Yes, it is ok. but we need to detached the truck and you should assemble in your country., and you can also choose by flatrack contianer or roro or bulk shipping to ensure the trucks complete.
Q: How about your Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck quality?
A: All the trucks are Original, the quality is 100% guaranteed and we have one years warranty for Sinotruk and two years for Shacman.
Q: I want to be your agent in my country for Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck. is that ok?
A: lt's ok to be agent but need minimum one year order 200 units to be the sole agent, but if not sole agent then 5 units is ok to be normal agent.
Q: How about your company's service for Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck, especially after-sale service?
A: SINOTRUK/SHACMAN has many after sales service station over the world, we can also provide spare parts from China for you to guarantee the Vehicles works well.
Q: What is your payment terms for Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck?
A: TT Payment, Normally its 30% prepaid and 70% balance before delivery
Q：what is the production time for Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck?
A: Production time: Normally within 30 workdays after received deposit, some trucks and trailers we have stock so we can deliver quickly.
Q：What is your company after sales Service for Sinotruk Howo 12 Wheeler 8x4 Water Tanker Truck?
A: our warranty and guarantee is one year or 30,0000km which comes first which is the Warranty.
